Panasonic door lock series (Panasonic split door lock)
stylish, elegant, durable
Suitable for 35~55mm wooden doors and metal doors.
High-quality SUS304 stainless steel
anti-theft design is used to prevent the door lock screws
from being removed outside the door to prevent loosening of the handle. The diagonal tongue can be turned, and the left and right doors can be used
with special cupronickel keys.
Material |
The main hardware is all made of 304 stainless steel or 59 copper
|
design |
Based on the design principles of elegance, fashion, simplicity and grandeur, it
satisfies the needs of most commercial users and has excellent quality. |
Craft |
Combining traditional processing and modern CNC finishing technology to
provide users with more beautiful, safer and more environmentally friendly products. |
installation |
Pursue simplicity, sturdiness, durability, maintenance-free, less maintenance, and
minimize the trouble of users during installation and use. |
|

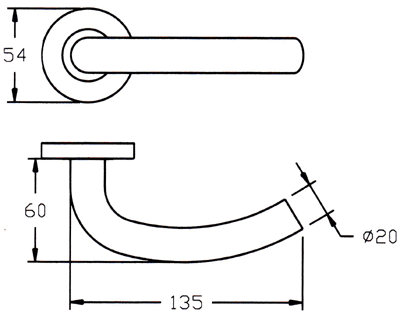

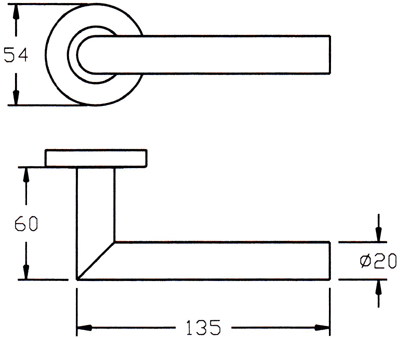

Door lock (handle) ZS-001B |
|
|
The standard configuration |
SUS304 stainless steel handle: 1 pair of
SUS304 stainless steel handle decorative cover: 1 pair of
SUS304 stainless steel lock cylinder decorative cover: 1 pair |
Technical Parameters |
Applicable door thickness 35~55mm
Handle thickness: 1.2mm |
Material/surface treatment |
Stainless steel sanding*  Stainless steel polishing* |
|
|
|
|

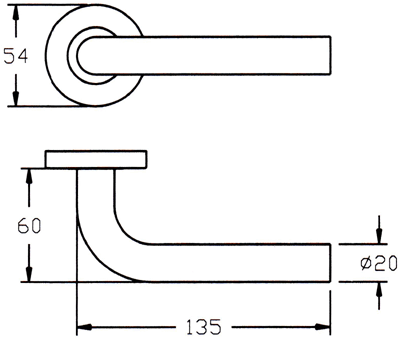

Door lock (handle) ZS-002B |
|
|
The standard configuration |
SUS304 stainless steel handle: 1 pair of
SUS304 stainless steel handle decorative cover: 1 pair of
SUS304 stainless steel lock cylinder decorative cover: 1 pair |
Technical Parameters |
Applicable door thickness 35~55mm
Handle thickness: 1.2mm |
Material/surface treatment |
Stainless steel sanding* Stainless steel polishing* |
|
|
|
|

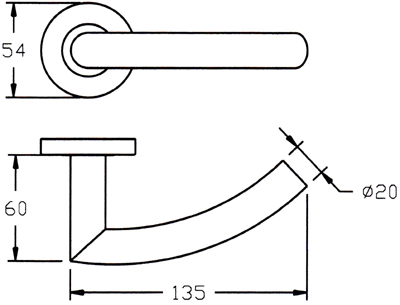

Door lock (handle) ZS-003B |
|
|
The standard configuration |
SUS304 stainless steel handle: 1 pair of
SUS304 stainless steel handle decorative cover: 1 pair of
SUS304 stainless steel lock cylinder decorative cover: 1 pair |
Technical Parameters |
Applicable door thickness 35~55mm
Handle thickness: 1.2mm |
Material/surface treatment |
Stainless steel sanding* Stainless steel polishing* |
|
|
|
|

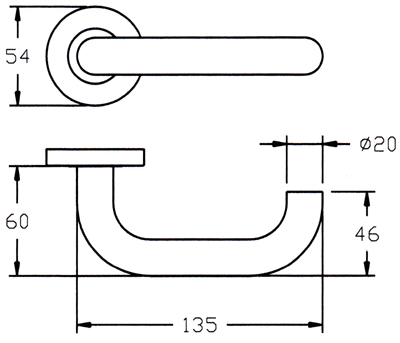

Door lock (handle) ZS-004B |
|
|
The standard configuration |
SUS304 stainless steel handle: 1 pair of
SUS304 stainless steel handle decorative cover: 1 pair of
SUS304 stainless steel lock cylinder decorative cover: 1 pair |
Technical Parameters |
Applicable door thickness 35~55mm
Handle thickness: 1.2mm |
Material/surface treatment |
Stainless steel sanding* Stainless steel polishing* |
|
|
|
|
Door lock (handle) ZS-005B |
|
|
The standard configuration |
SUS304 stainless steel handle: 1 pair of
SUS304 stainless steel handle decorative cover: 1 pair of
SUS304 stainless steel lock cylinder decorative cover: 1 pair |
Technical Parameters |
Applicable door thickness 35~55mm
Handle thickness: 1.2mm |
Material/surface treatment |
Stainless steel sanding* Stainless steel polishing* |
|
|
|
|

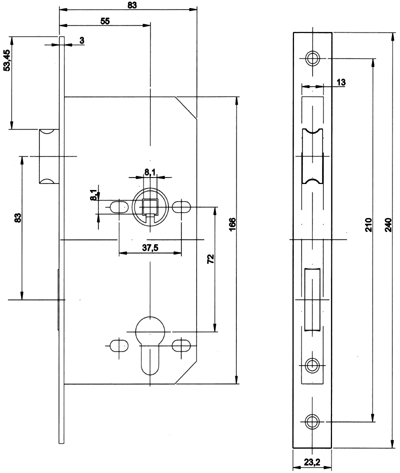

Door lock lock body ST-557201 |
|
|
Functions and features |
Suitable for wooden doors and metal doors. The
oblique tongue can be turned. It is suitable for left and right doors. |
The standard configuration |
Lock body box: 1, square tongue: 1,
oblique tongue: 1, flat lock piece: 1,
screw: 1 set (install wooden door, use 2 slub screws; install metal door, use 4 slub Screw) |
Technical Parameters |
Applicable door thickness 35~55mm,
lock margin: 55mm, lock core distance: 72mm |
Material/surface treatment |
Flat lock piece, inclined tongue, square tongue: stainless steel sanding * stainless steel polishing *
lock body box: electrophoresis |
|
|
|
|

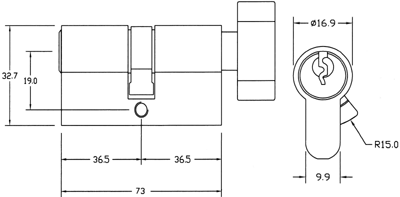

Door lock core SX-001 |
|
|
style |
Oval unilateral handwheel lock cylinder |
Functions and features |
Open the lock cylinder for the key
while opening the handwheel |
The standard configuration |
Waist-type unilateral handwheel lock cylinder: 1
copper key: 6
lock cylinder stud screws: 1 |
Technical Parameters |
Length: 73mm |
Material/surface treatment |
Copper sand nickel |
|
|
|
|

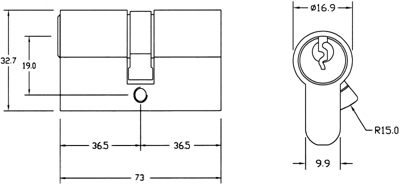

Ddoor lock core SX-002 |
|
|
style |
Bilateral lock cylinder |
Functions and features |
Both sides are keys to open the lock cylinder |
The standard configuration |
Bilateral lock cylinder: 1
copper key: 6
lock cylinder piercing screws: 1 |
Technical Parameters |
Length: 73mm |
Material/surface treatment |
Copper sand nickel |
|
|
|
|

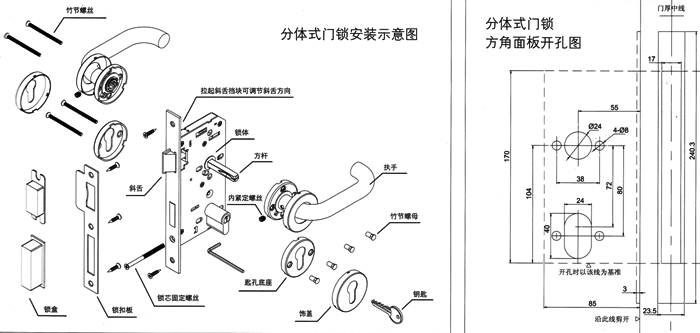

installation steps:
- Cut the 1:1 hole pattern along the line, paste the hole pattern on the door, and cut holes according to the size shown.
- According to the door opening direction, adjust the diagonal tongue to the proper orientation (if the factory orientation is not applicable, pull up the diagonal tongue stopper, the diagonal tongue will automatically pop out, just turn the diagonal tongue 1800 and press into the diagonal tongue).
- Insert the lock body into the door hole, put the screws (do not tighten), insert the square rod (note that the concave direction of the square rod is consistent with the tightening installation direction in the handle), and install the handle (note that the slub screw is in the door and the slub nut is in the Outside).
- Insert the lock core and fix it with the lock core fixing screw, install the keyhole base, adjust the handle and lock body to work normally, tighten the lock body, handle and base screws, put the keyhole meson, and screw on the decorative cover.
- After the door lock is installed, install the lock box and the lock plate on the door frame aligned with the lock tongue.
|
|
