Panasonic Pull Handle Series



The loose handle series is suitable for wooden doors, glass doors and metal doors.

Fashionable and elegant, durable

Material

The main hardware is all made of 304 stainless steel or 59 copper

design

Based on the design principles of elegance, fashion, simplicity and grandeur, it
meets the needs of most commercial users and has excellent quality.

Craft

Combining traditional processing and modern CNC finishing technology to
provide users with more beautiful, safer and more environmentally friendly products.

installation

Pursue simplicity, sturdiness, durability, maintenance-free, less maintenance, and
reduce users' troubles during installation and use.

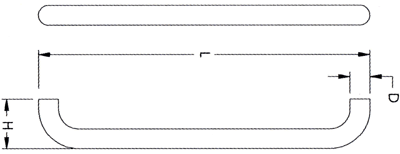

Release the pull handle LS-Y01

Release the pull handle LS-Y01

Functions and features are
suitable for wooden doors, glass doors, metal doors


Technical Parameters

D

L

H

δ (material thickness)

Φ25

400

75

1.2

Φ32

600

80

1.5

Φ32

800

80

1.5

Φ32

1000

80

1.5

Φ32

1200

80

1.5

Φ32

1400

80

1.5

Φ32

1600

80

1.5

Φ38

1800

85

1.5

Φ38

2000

85

1.5

Φ38

2200

85

1.5

Material/surface treatment
Stainless steel sanding* Stainless steel polishing*

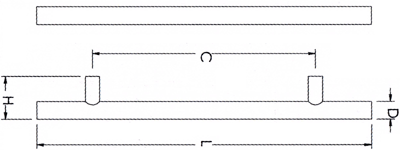

Release the pull handle LS-Y02

Release the pull handle LS-Y02

Functions and features are
suitable for wooden doors, glass doors, metal doors


Technical Parameters

D

C

H

L

δ (material thickness)

Φ25

300

70

400

1.2

Φ32

450

77

600

1.5

Φ32

600

77

800

1.5

Φ32

800

77

1000

1.5

Φ32

1000

77

1200

1.5

Φ32

1200

77

1400

1.5

Φ32

1400

77

1600

1.5

Φ38

1600

83

1800

1.5

Φ38

1800

83

2000

1.5

Φ38

2000

83

2200

1.5

Material/surface treatment
Stainless steel sanding* Stainless steel polishing*

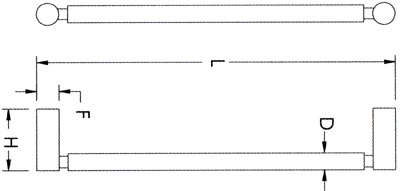

Release the pull handle LS-Y03

Release the pull handle LS-Y03

Functions and features are
suitable for wooden doors, glass doors, metal doors


Technical Parameters

D

F

L

H

δ (material thickness)

Φ25

Φ32

400

70

1.2

Φ25

Φ32

600

70

1.2

Φ25

Φ32

800

70

1.2

Φ32

Φ38

1000

77

1.5

Φ32

Φ38

1200

77

1.5

Φ32

Φ38

1400

77

1.5

Φ32

Φ38

1600

77

1.5

Φ38

Φ38

1800

83

1.5

Φ38

Φ38

2000

83

1.5

Φ38

Φ38

2200

83

1.5

Material/surface treatment
Stainless steel sanding* Stainless steel polishing*

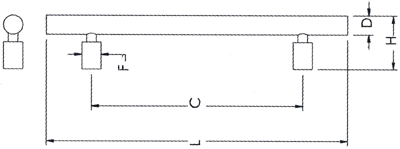

Release the pull handle LS-Y04

Release the pull handle LS-Y04

Functions and features are
suitable for wooden doors, glass doors, metal doors


Technical Parameters

D

C

H

L

F

δ (material thickness)

Φ25

300

85

400

Φ25

1.2

Φ32

450

92

600

Φ32

1.5

Φ32

600

92

800

Φ32

1.5

Φ32

800

92

1000

Φ32

1.5

Φ32

1000

92

1200

Φ32

1.5

Φ32

1200

92

1400

Φ32

1.5

Φ38

1400

98

1600

Φ38

1.5

Φ38

1600

98

1800

Φ38

1.5

Φ38

1800

98

2000

Φ38

1.5

Φ38

2000

98

2200

Φ38

1.5

Material/surface treatment
Stainless steel sanding* Stainless steel polishing*

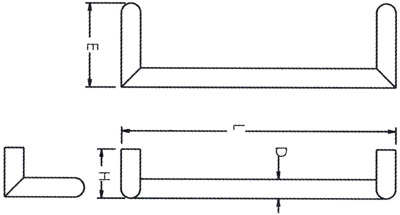

Release the pull handle LS-Y05

Release the pull handle LS-Y05

Functions and features are
suitable for wooden doors, glass doors, metal doors


Technical Parameters

D

L

H

E

δ (material thickness)

Φ25

400

70

120

1.2

Φ32

600

80

140

1.5

Φ32

800

80

140

1.5

Φ32

1000

80

140

1.5

Φ32

1200

80

140

1.5

Φ32

1400

80

140

1.5

Φ32

1600

80

140

1.5

Φ38

1800

85

150

1.5

Φ38

2000

85

150

1.5

Φ38

2200

85

150

1.5

Material/surface treatment
Stainless steel sanding* Stainless steel polishing*

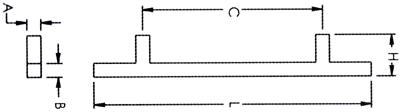

Release the pull handle LS-F01

Release the pull handle LS-F01

Functions and features are
suitable for wooden doors, glass doors, metal doors


Technical Parameters

A

B

C

H

L

δ (material thickness)

13

25

LA

58

400

1.5

25

38

LA

70

600~2200

1.5

25

13

LA

70

400

1.5

38

25

LA

83

600~2200

1.5

25

25

LA

70

400~2200

1.5

Material/surface treatment
Stainless steel sanding* Stainless steel polishing*

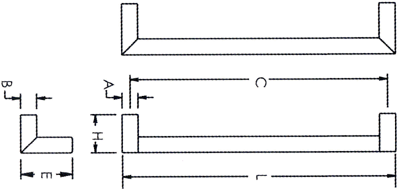

Release the pull handle LS-F02

Release the pull handle LS-F02

Functions and features are
suitable for wooden doors, glass doors, metal doors


Technical Parameters

A

B

C

H

L

E

δ (material thickness)

13

25

LA

58

400

60

1.5

25

38

LA

70

600~2200

110

1.5

25

13

LA

70

400

60

1.5

38

25

LA

83

600~2200

110

1.5

25

25

LA

70

400

80

1.5

25

25

LA

70

600~2200

80

1.5

Material/surface treatment
Stainless steel sanding* Stainless steel polishing*

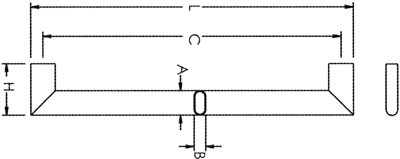

Release the pull handle LS-F03

Release the pull handle LS-F03

Functions and features are
suitable for wooden doors, glass doors, metal doors


Technical Parameters

A

B

C

H

L

δ (material thickness)

38

18

LA

83

400~2200

1.2

Material/surface treatment
Stainless steel sanding* Stainless steel polishing*

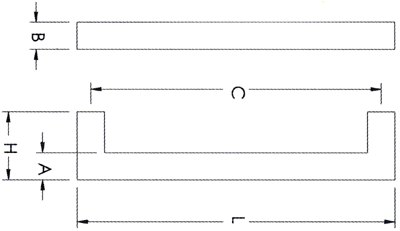

Release the pull handle LS-F04

Release the pull handle LS-F04

Functions and features are
suitable for wooden doors, glass doors, metal doors


Technical Parameters

A

B

C

H

L

δ (material thickness)

13

25

300

70

400

1.5

25

38

450

70

600

1.5

25

38

L-200

70

800~1600

1.5

25

38

L-200

75

1800~2200

1.5

25

13

300

70

400

1.5

38

25

450

70

600

1.5

38

25

L-200

70

800~1600

1.5

38

25

L-200

75

1800~2200

1.5

25

25

300

70

400

1.5

25

25

450

70

600

1.5

25

25

L-200

70

800~1600

1.5

30

30

L-200

75

1800~2200

1.5

Material/surface treatment
Stainless steel sanding* Stainless steel polishing*

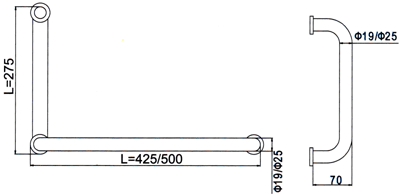

Panasonic bathroom door handle LS-01

Panasonic bathroom door handle LS-01

Panasonic bathroom door handle LS-01

Technical Parameters

Applicable glass thickness: 6~12mm

Material/surface treatment

Stainless steel polishing*

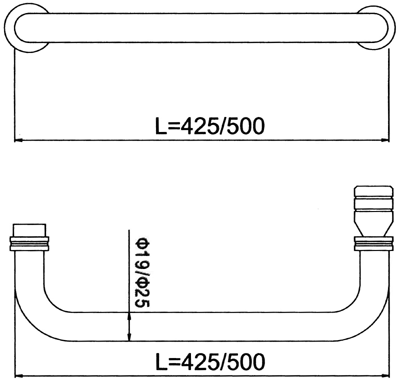

Panasonic bathroom door handle LS-02

Panasonic bathroom door handle LS-02

Panasonic bathroom door handle LS-02

Technical Parameters

Applicable glass thickness: 6~12mm

Material/surface treatment

Stainless steel polishing*
