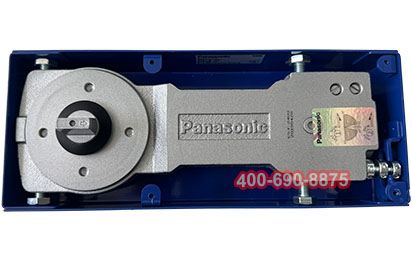

Panasonic ES-F-2400 Floor Spring

Panasonic ES-F-2400 Floor Spring

Product Features:

  • Panasonic ES-F-2400 extra heavy-duty floor spring, housing 310 x 124 x 59 mm.
  • 250 kg max load, 1350 mm max door width, for oversized glass doors, copper doors and fire doors.
  • 90° hold-open, two-speed adjustable closing, max opening angle 120°.
  • Reinforced arm and spring, thickened stainless steel cover prevents deformation.
  • Brushed stainless steel plate, blue steel housing, CNC machined, no oil leakage.

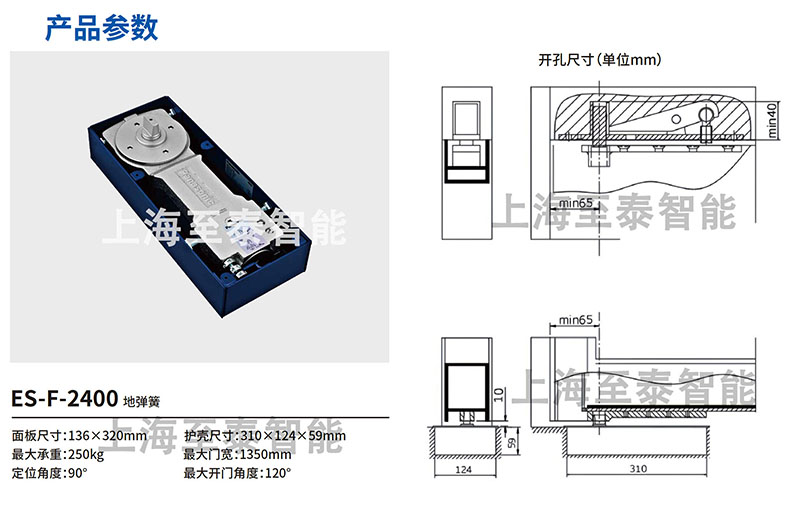

ItemModelMax Door WidthMax LoadDimensions (mm)Notes
Floor Spring ES-F-2400 1350 mm 250 kg Face plate: 136 x 320 mm
Housing: 310 x 124 x 59 mm		 90° hold-open, max opening 120°, two-speed adjustable, stainless steel cover, blue steel housing



Panasonic ES-F-2400 Floor Spring cutout dimensions



Available Since: March 2024

Note: The ES-F series is Panasonic's new generation floor spring. Use with Panasonic ES-C series door clamps. Not compatible with older S/A/E series clamps.
