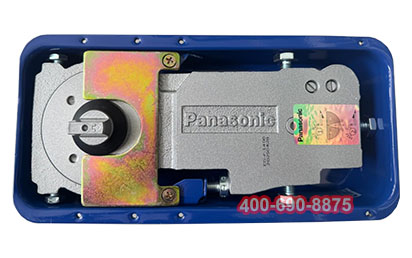

Panasonic ES-F-1400 Floor Spring

Panasonic ES-F-1400 Floor Spring

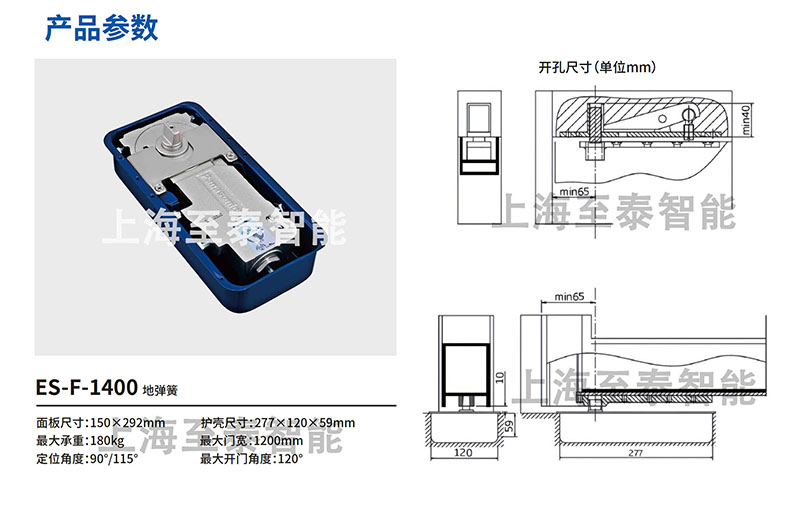

Product Features:

  • Panasonic ES-F-1400 heavy-duty floor spring, housing 277 x 120 x 59 mm, reinforced body.
  • 180 kg max load, 1200 mm max door width, for heavy glass, copper and stainless steel doors.
  • 90°/115° hold-open, two-speed adjustable closing.
  • Max opening angle 120°, brushed stainless steel plate, blue steel housing.
  • CNC machining ensures 0-degree center reset accuracy after years of use.







ItemModelMax Door WidthMax LoadDimensions (mm)Notes
Floor Spring ES-F-1400 1200 mm 180 kg Face plate: 150 x 292 mm
Housing: 277 x 120 x 59 mm		 90°/115° hold-open, max opening 120°, two-speed adjustable, stainless steel cover, blue steel housing



Panasonic ES-F-1400 Floor Spring cutout dimensions



Available Since: March 2024

Note: The ES-F series is Panasonic's new generation floor spring. Use with Panasonic ES-C series door clamps. Not compatible with older S/A/E series clamps.
