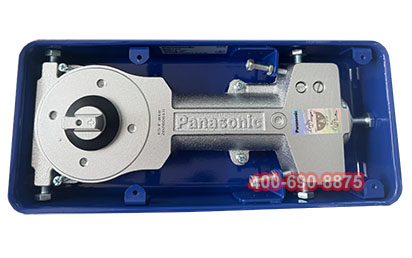

Panasonic ES-F-818 Floor Spring

Panasonic ES-F-818 Floor Spring

Product Features:

  • Panasonic ES-F-818 universal floor spring, face plate 145 x 309 mm.
  • 120 kg max load, 1100 mm max door width, suitable for hotel, bank and office glass doors.
  • Housing 288 x 124 x 51 mm, 90°/115° hold-open positions.
  • Two-speed adjustable closing, 90° hold-open, max opening 120°.
  • Stainless steel cover plate, blue steel housing, thickened stainless steel plate prevents sagging.







ItemModelMax Door WidthMax LoadDimensions (mm)Notes
Floor Spring ES-F-818 1100 mm 120 kg Face plate: 145 x 309 mm
Housing: 288 x 124 x 51 mm		 90°/115° hold-open, max opening 120°, two-speed adjustable, stainless steel cover, blue steel housing

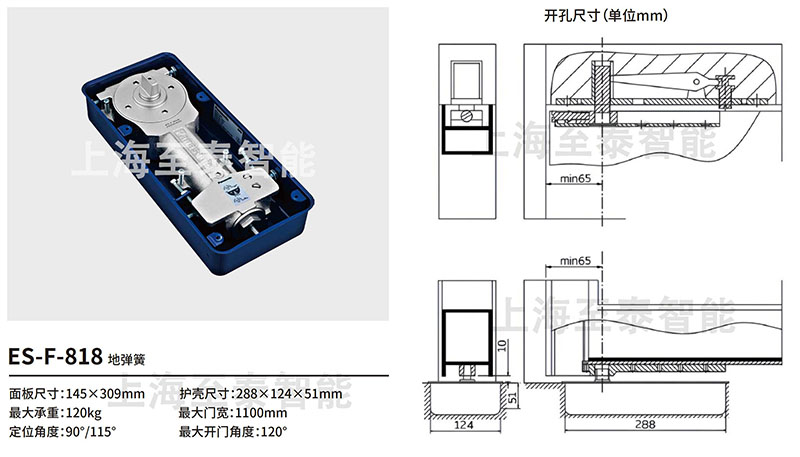

Panasonic ES-F-818 Floor Spring cutout dimensions



Available Since: March 2024

Note: The ES-F series is Panasonic's new generation floor spring. Use with Panasonic ES-C series door clamps. Not compatible with older S/A/E series clamps.
