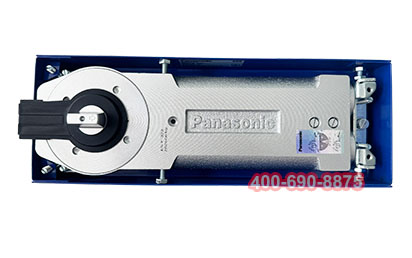

Panasonic ES-F-322 Floor Spring

Panasonic ES-F-322 Floor Spring

Product Features:

  • Panasonic ES-F-322 medium-duty floor spring, housing 306 x 108 x 41 mm, slim profile.
  • 150 kg max load, 1200 mm max door width, ideal for shopping malls and office buildings.
  • Max opening angle 130°, wider passage for wheelchair and luggage.
  • 90°/115° hold-open, two-speed adjustable closing, CNC precision machining.
  • Brushed stainless steel face plate, blue steel housing, reinforced arm and spring.







ItemModelMax Door WidthMax LoadDimensions (mm)Notes
Floor Spring ES-F-322 1200 mm 150 kg Face plate: 130 x 322 mm
Housing: 306 x 108 x 41 mm		 90°/115° hold-open, max opening 130°, two-speed adjustable, stainless steel cover, blue steel housing

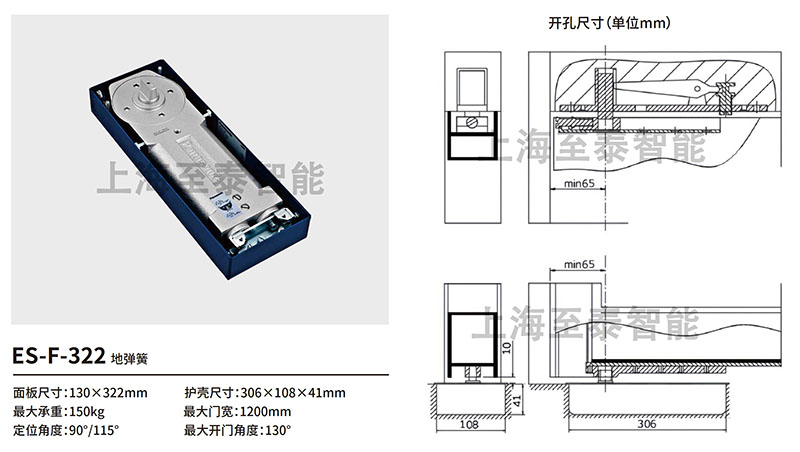

Panasonic ES-F-322 Floor Spring cutout dimensions



Available Since: March 2024

Note: The ES-F series is Panasonic's new generation floor spring. Use with Panasonic ES-C series door clamps. Not compatible with older S/A/E series clamps.
