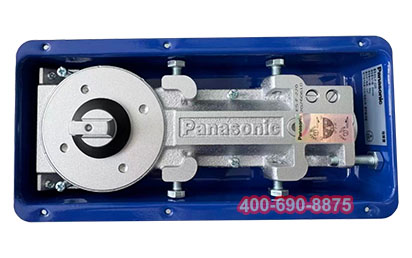

Panasonic ES-F-220 Floor Spring

Panasonic ES-F-220 Floor Spring

Product Features:

  • Panasonic ES-F series floor spring with European cam mechanism, precise center reset.
  • Face plate 134 x 267 mm, suitable for single-leaf light glass and aluminum doors.
  • 90 kg max load, 850 mm max door width, ideal for office and retail entrances.
  • 90°/115° hold-open positions, two-speed adjustable closing.
  • Stainless steel cover plate, blue steel housing, CNC machined for long-lasting performance.





ItemModelMax Door WidthMax LoadDimensions (mm)Notes
Floor Spring ES-F-220 850 mm 90 kg Face plate: 134 x 267 mm
Housing: 102 x 252 x 51 mm		 90°/115° hold-open, max opening 120°, two-speed adjustable, stainless steel cover, blue steel housing

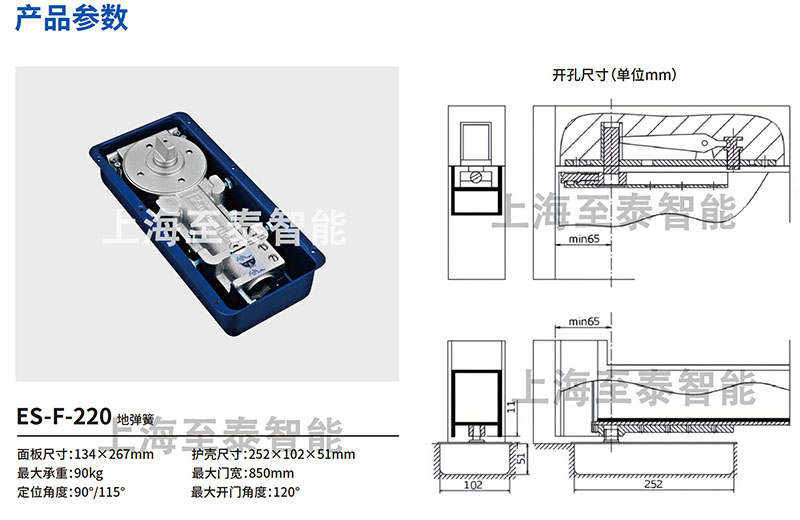

Panasonic ES-F-220 Floor Spring cutout dimensions



Available Since: March 2024

Note: The ES-F series is Panasonic's new generation floor spring. Use with Panasonic ES-C series door clamps. Not compatible with older S/A/E series clamps.
